Temperature Treatment Systems

Temperature Treatment Systems

Horizontal - HTT/T-Series

Product-specific curing and drying of adhesives, varnishes, etc. as well as for temperature control for functional tests.

• HTT max. +200 °C
• Custom solutions
• HTT series: Modular system for every process (in 0.5m steps / 1.5 - 12.0)
• T-Series: Modular system for every process (in 0.7m increments / 210-560)
• Multiple track system possible
• Up to two transport levels possible
• Heavy-duty transport possible
• low maintenance effort

Vertikal - VH-Series

Product-specific curing and drying of adhesives, varnishes, etc. as well as for temperature control for functional tests.

• Transport system is based on a workpiece carrier
• Carrier size (400 x 400mm / 500 x 500mm)
• 3 or 4 zones "up" and "down"
• Can be operated manually or automatically
• oil-free transport
• also available with cooling zones
•  minimal space requirement


Temperature Treatment & Function Tests

Perfect pretreatment for electronic components and modules.

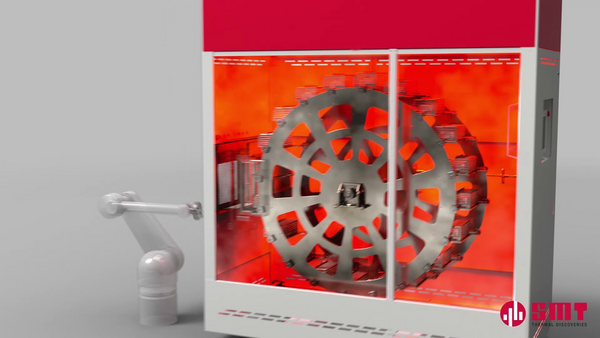

Cube Systems

• for hot function test: 60 °C to 155 °C
• for cooling to room temperature
• for cold function test: –50 °C to –10 °C
• small footprint
• Loading and unloading in one place by an employee or automated
• Increasing product reliability via temperature function testing
• high throughput: 15 sec cycle possible
• Traceability and handling options
